Fast Ethernet Extenders (100Mbps)

C4L6400-TWP-BT

C4L6400-TWP-BT

Product Features

  • Using legacy analog Intercom and CCTV UTP cables for installation High Power consumption IP Intercom, IP camera, Wi-Fi AP, PoE LED and IP devices
  • IEEE 802.3 af/at/bt Compliant PoE (Max. 90 Watt) for IP Intercom and IP camera power supply
  • Support the 70VDC power supply for the longer power distance feature, This 70VDC power supply feature is the very unique and world first option to overcome the BT PoE++ power distance coverage

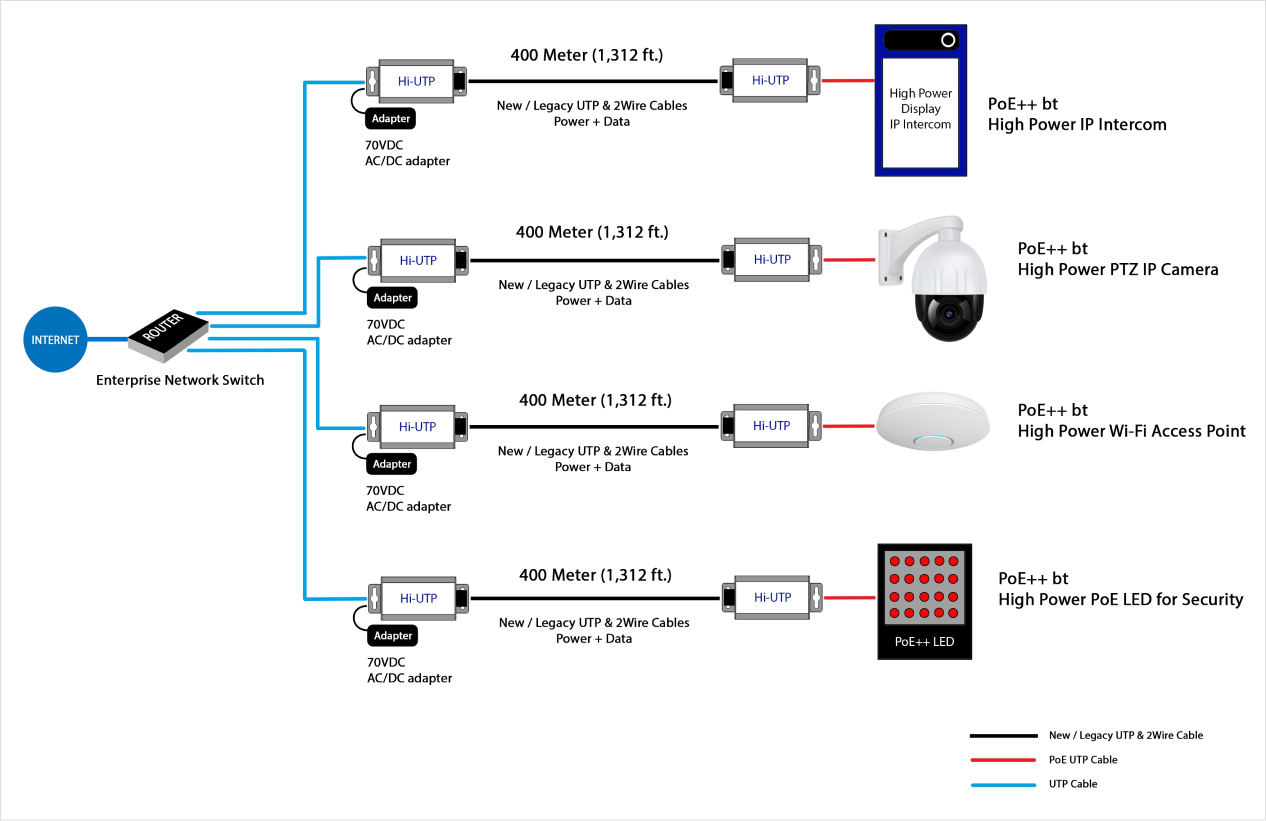

  • One master extender can support up to four slave extenders using 1:2 UTP Splitter connector, (If you use the IEEE802.3 bt PoE++ Powered Device unit, please connect 1Master : 1Slave network topology)
  • Extremely cost saving and time for IP Intercom, IP camera, VOIP and IP device installation using legacy analog UTP cables and 1:2 UTP Splitter connector
  • Long range Ethernet Data & Power extension over UTP - 1,312 feet. (400 Meter, @CAT6)
  • High data rate - Up to four IP Intercoms and Mega-pixel cameras
  • Easy configuration and No IP address and network setup required
  • Support 3 Year Warranty
  • LED indicator for installation - Power, Link and Data traffic status
  • Compact size extender - fits inside most camera housings
